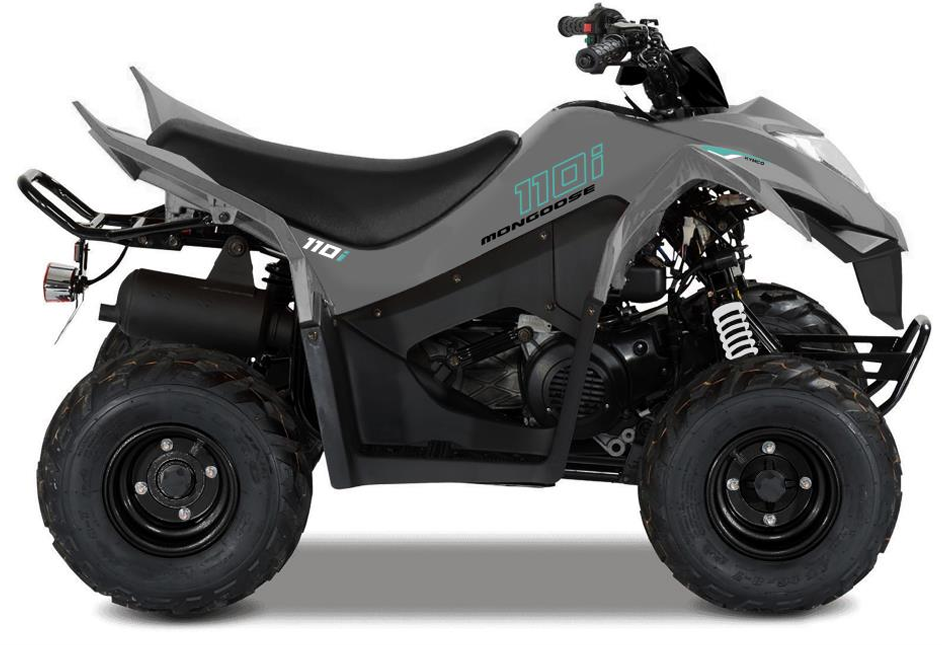

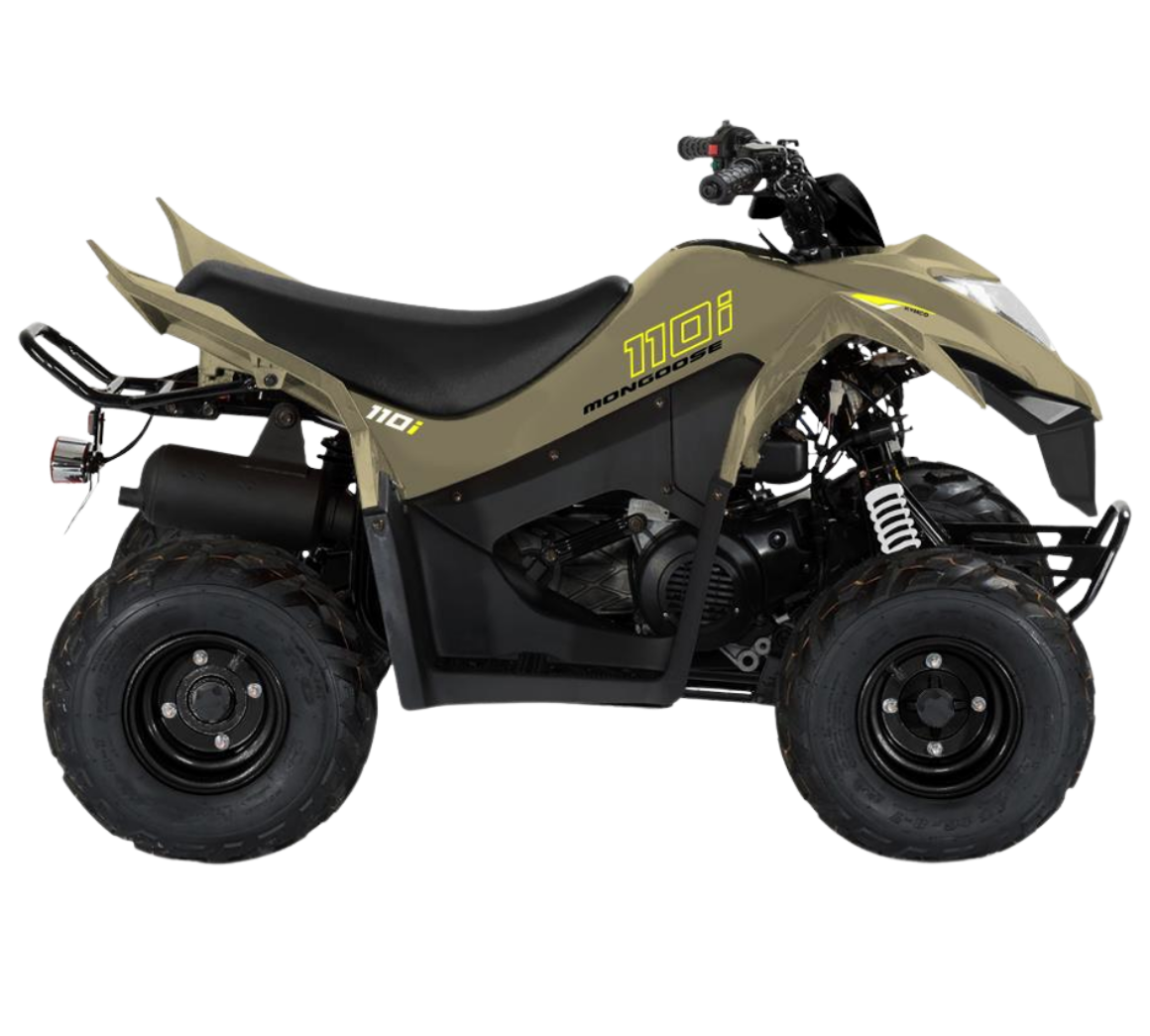

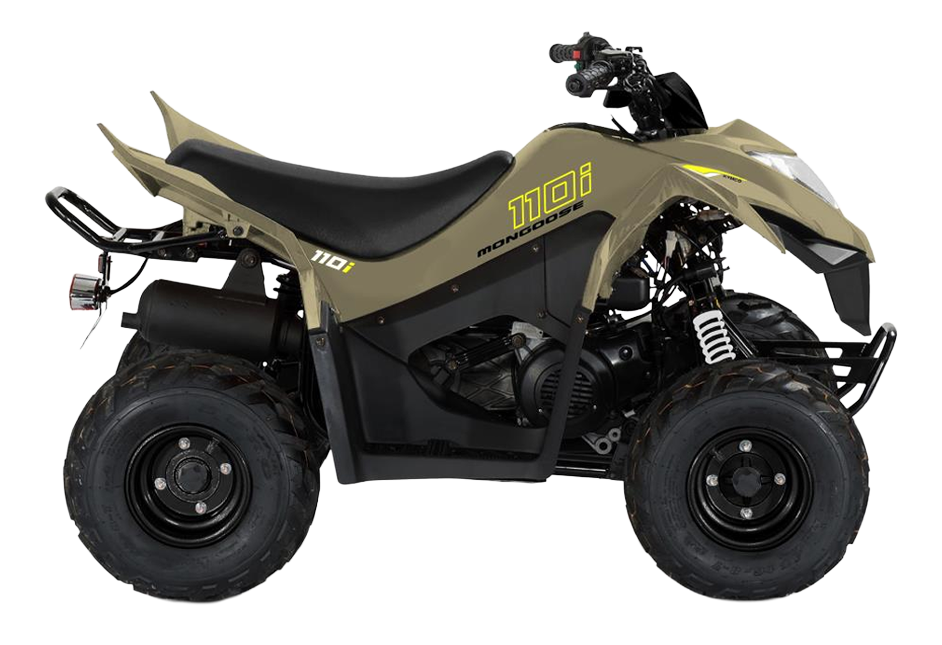

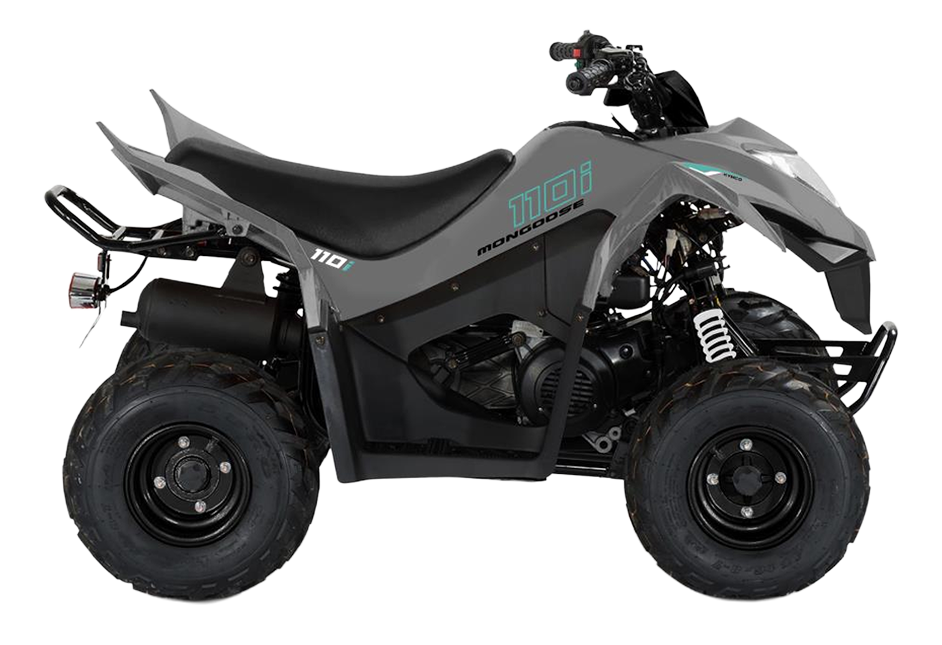

Available Colors

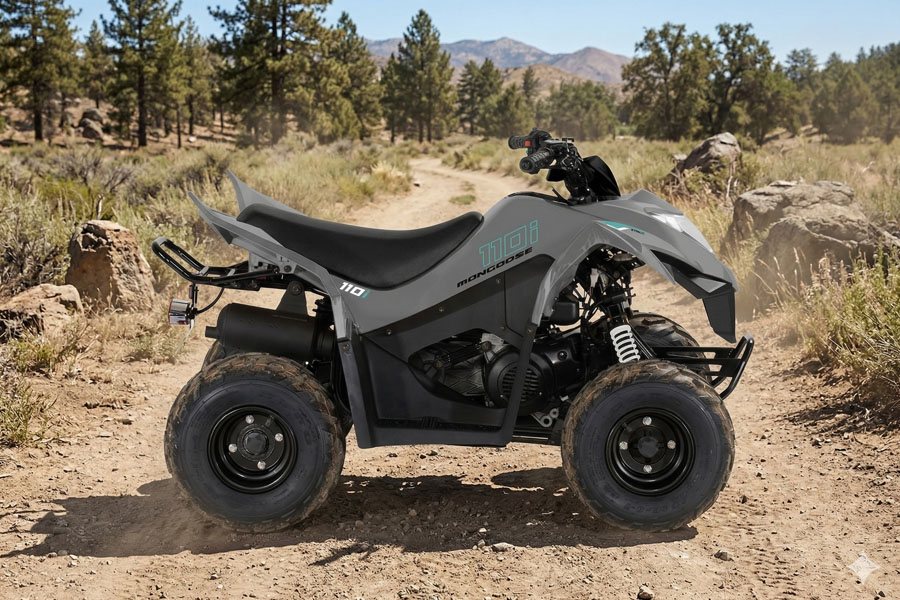

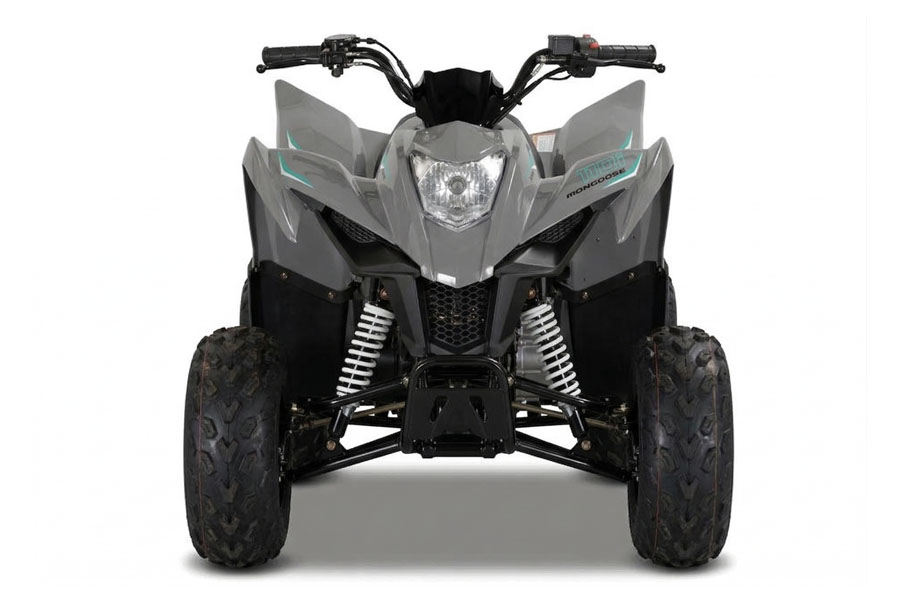

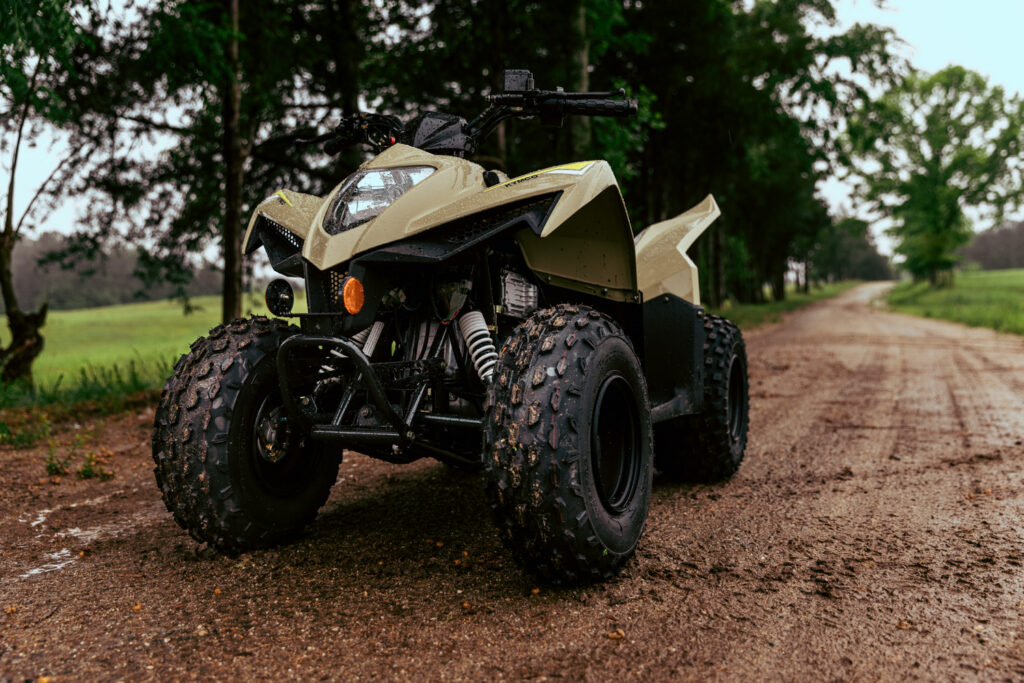

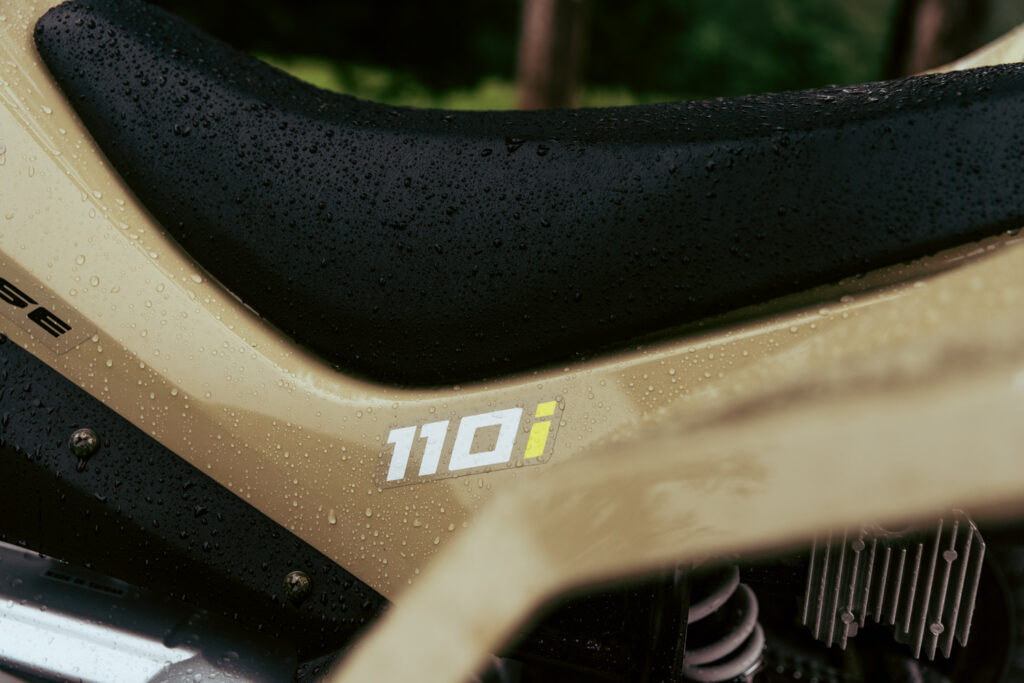

A youth ATV engineered to build skills and independence. With a slim, ergonomic seat design and fully automatic transmission with reverse, this ATV offers a safer way to grow into riding.
| Type | SOHC 4-Stoke, 2-Valve, Single Cylinder |
| Displacement | 111.7cc |
| Bore x Stroke | 52.4 x 51.8 mm |
| Claimed Horsepower | 8.3 hp |
| Claimed Torque | 6.4 ft lbs @ 5500 rpm |
| Cooling | Fan |
| Fuel System | Fuel Injection |
| Ignition | Electric |

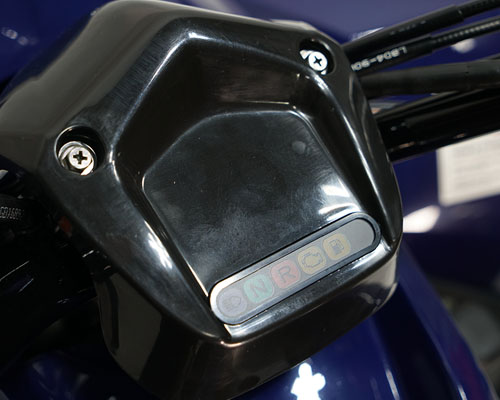

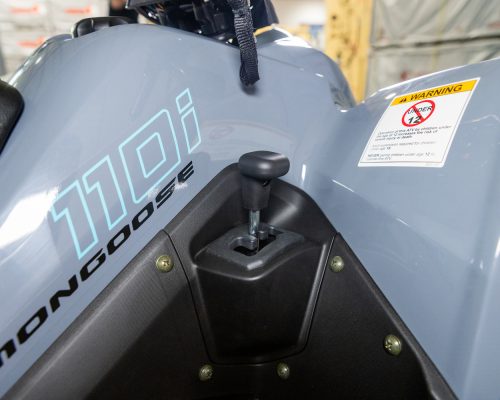

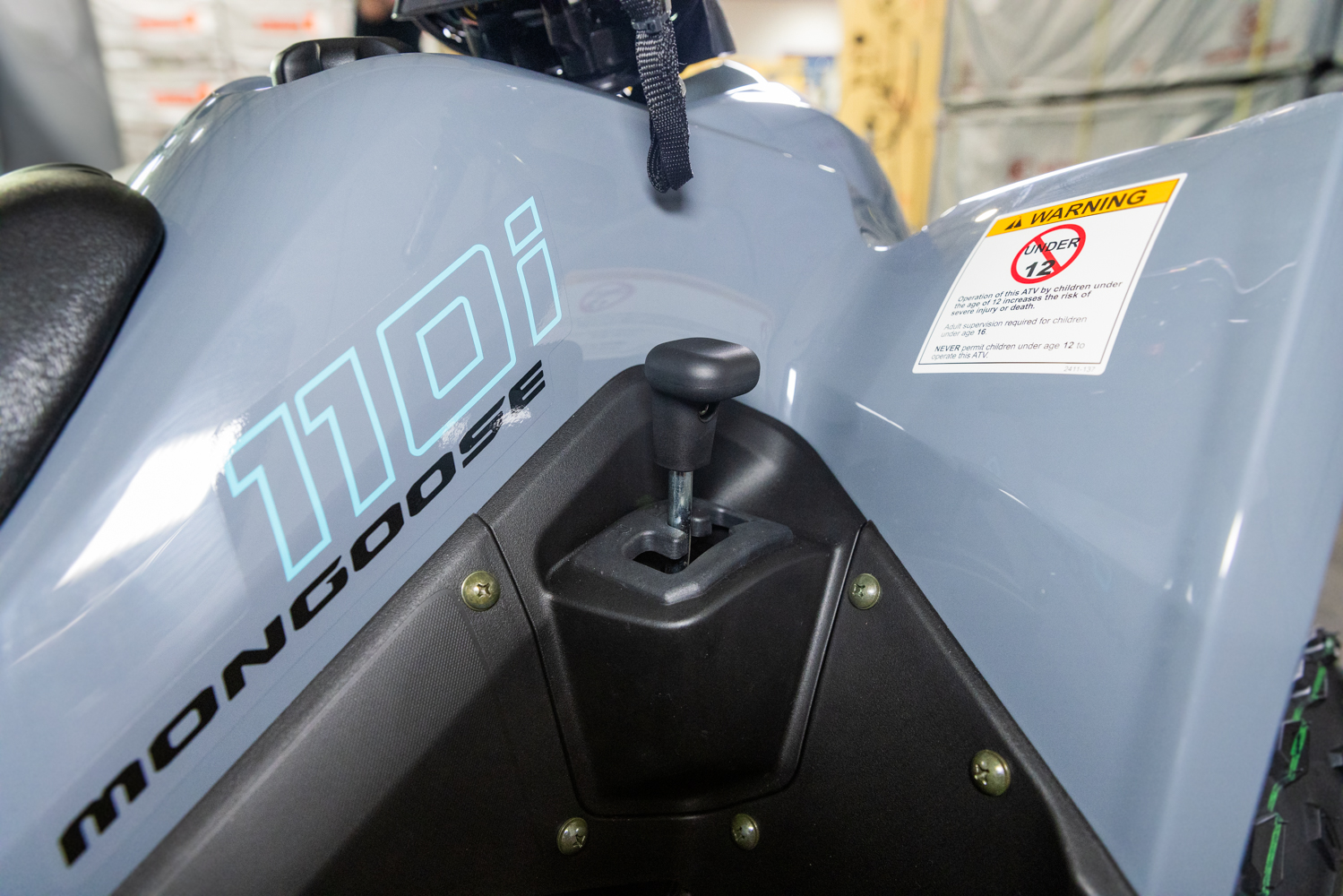

| Transmission | CVT Automatic F-N-R |
| Final Drive | 428 Chain |
| Brakes (Front/Rear) | Drum/Hydraulic Disc with Parking Brake Lock |

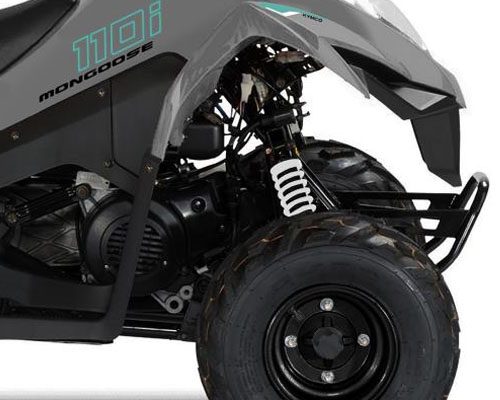

| Front Suspension | 2.8″ Single A-Arm |
| Rear Suspension | 2.9″ Swing Arm |

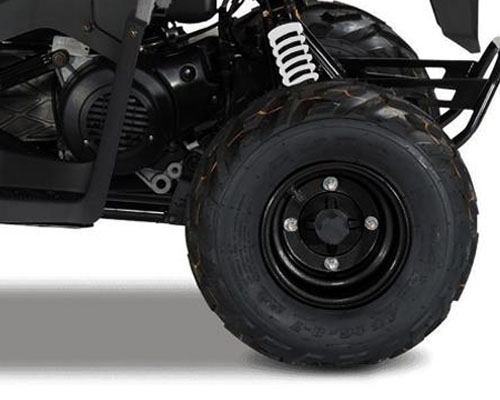

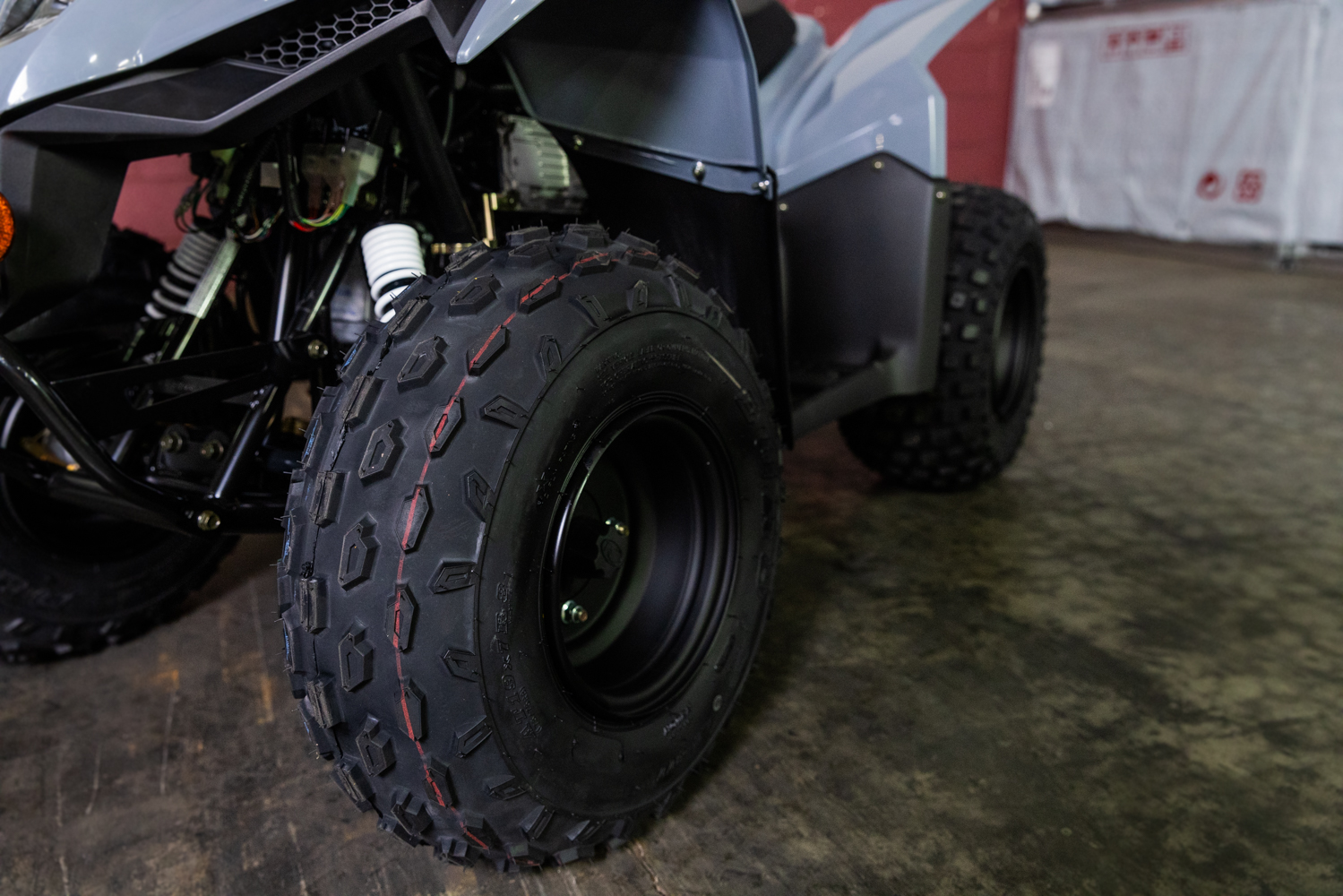

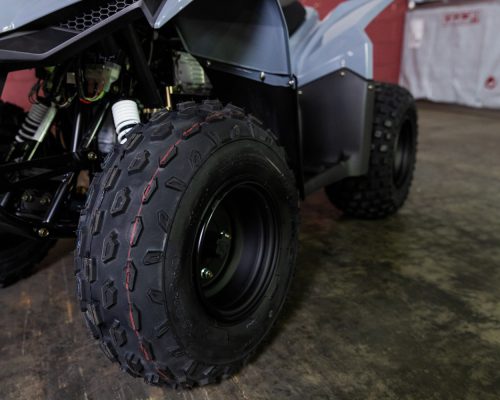

| Front Tires | 18×7-8 |
| Rear Tires | 18×9-8 |
| Shocks | Oil Dampened Preload Adjustable |
| Warranty | One-Year Limited Factory Warranty |
| Length | 57.5″ |
| Width | 35.4″ |
| Height | 36.2″ |
| Wheelbase | 37″ |
| Claimed Dry Weight | 264.6 lbs. |
| Ground Clearance | 5.9″ |
| Fuel Capacity | 1.4 gal |
